UN46C7000 LED bricked with service menu (changed the model)

[juusso]

What about yellow circled one?

[oga83]

S24CS0 is probably for micom... do not touch it
More generally, do not shortcut any pins before being sure it is the config eeprom
What are the refs of the other ones ?

[gotchinezcki]

What about yellow circled one?

didn't do anything.. nor the red one... I'll get all the references and post them later on..

[gotchinezcki]

S24CS0 is probably for micom... do not touch it
More generally, do not shortcut any pins before being sure it is the config eeprom
What are the refs of the other ones ?

Hi guys. sorry it took me so long to post the references.. i was travelling for work but finally had a break.. here they are. thx!

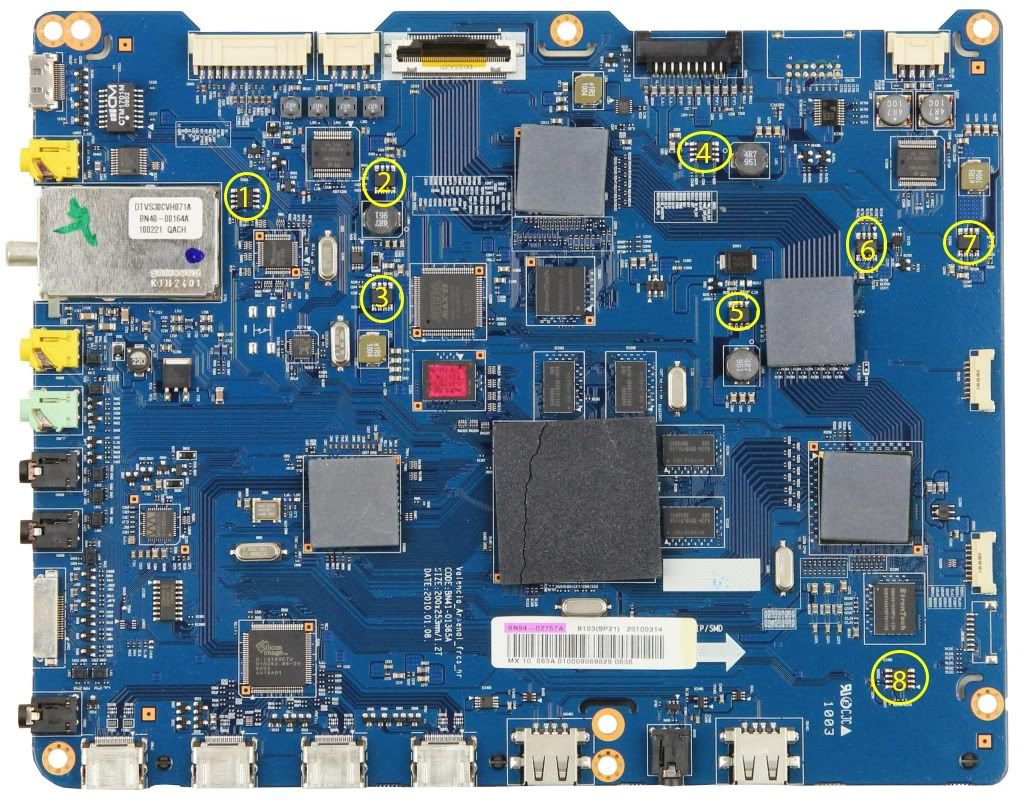

http://i1110.photobucket.com/albums/h44 ... 2757A2.jpg
http://i1110.photobucket.com/albums/h44 ... BOTTOM.jpg

1. IC604
S24c50
ZAVK2
J4440

2.IC404
Z1031AJ
ZADF1B

3.IC207
Z1021HA1
ZADE4T

4.IC206
ZADF1B

5.IC204
ZADF1B

6.IC1704
4256BRP
ST8007H

7.IC2303
Z1021HAI
ZADE4T

8. IC1902
ATMLH006
2FB2
9J2417A

BOTTOM (PHOTO)
9. IC1903
R191738
PSCCK01

10. IC1301
4256BRP
ST80007H

[oga83]

ATMLH006 (number 8) is the best candidate to me (I2C eeprom, could be connected to SoC).
S24C50 (number 1) could also be a good candidate (I2C eeprom), but its position is surprising to me (far from the SoC, and maybe connected to a tuner related chip).

Could you take a higres photo of these area so that we can confirm ?

[gotchinezcki]

ATMLH006 (number 8) is the best candidate to me (I2C eeprom, could be connected to SoC).
S24C50 (number 1) could also be a good candidate (I2C eeprom), but its position is surprising to me (far from the SoC, and maybe connected to a tuner related chip).

Could you take a higres photo of these area so that we can confirm ?

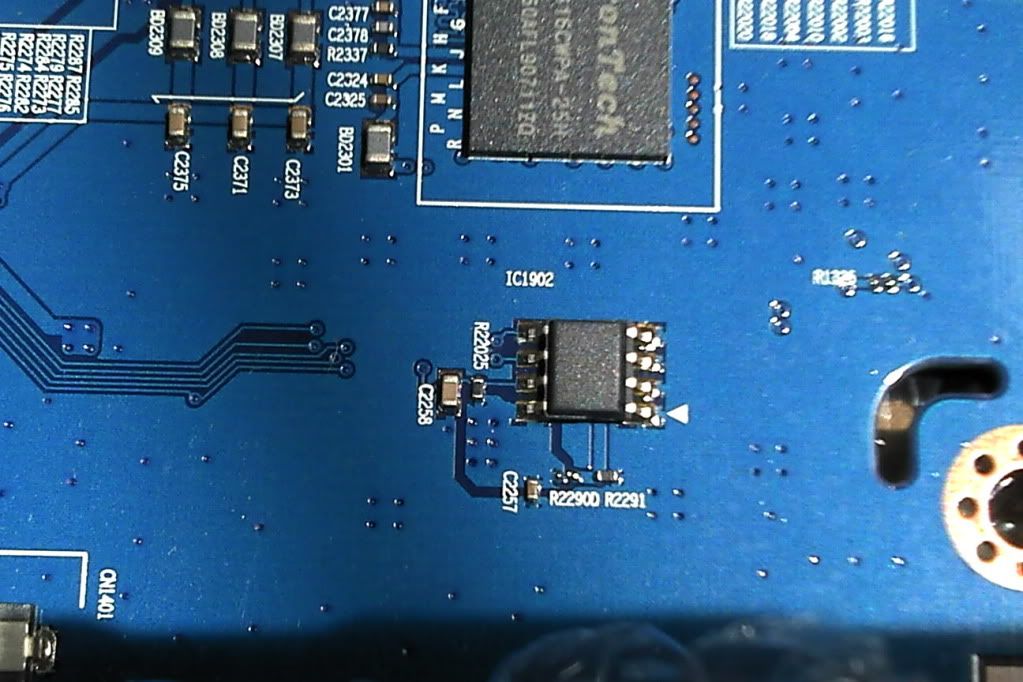

Here you go.. the first one is from chip number 8, the one all alone in the corner..

http://i1110.photobucket.com/albums/h44 ... 06_391.jpg

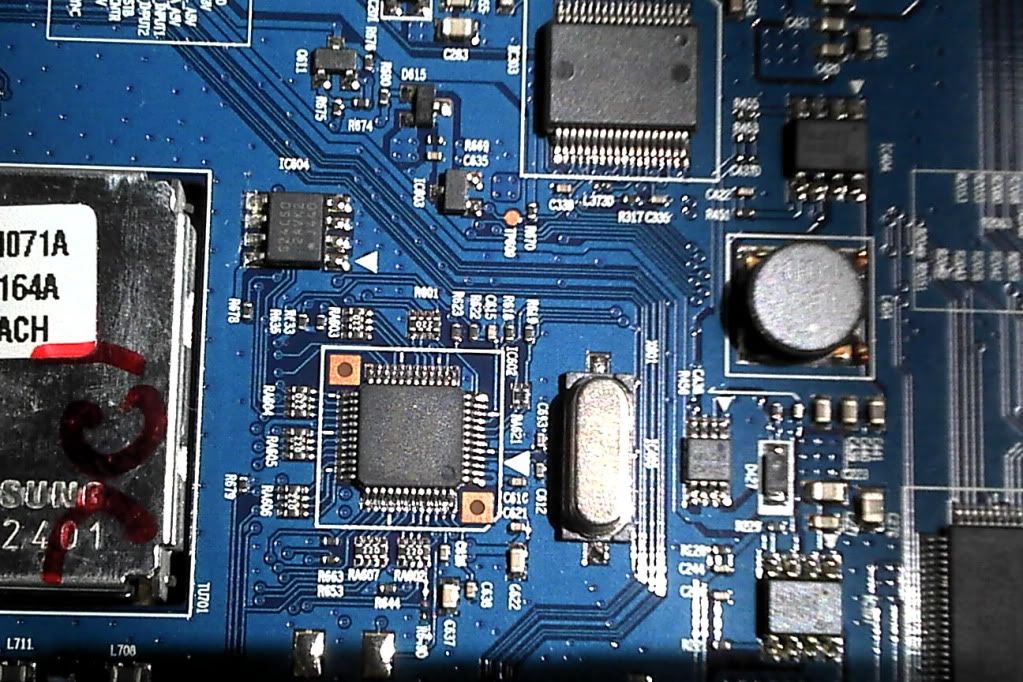

these other two are from chip number 1

http://i1110.photobucket.com/albums/h44 ... 14_600.jpg
http://i1110.photobucket.com/albums/h44 ... -36_63.jpg

hope they are good.. if not I can take more pictures..!

[oga83]

I confirm my previous post : chip #8 should be the one
To be more confident, you can try to follow sda/scl (the 2 signals connected to via-holes close to the chip) : they should go to the SoC

What's the crack on your SoC heatsink ?

[gotchinezcki]

I confirm my previous post : chip #8 should be the one
To be more confident, you can try to follow sda/scl (the 2 signals connected to via-holes close to the chip) : they should go to the SoC

What's the crack on your SoC heatsink ?

Hi Oga83, thank you I'll do that. the first photos (the one with the crack) are not mine, I got them from the web.. my SoC heatsink doesn't have any cracks!

[sbav1]

My bet is on chip number "10" (4256BRP == ST M24256, 256Kbit I2C EEPROM). It has the right size (32KB), and it seems to be connected to the main SoC - or maybe not, picture quality is not good enough to be 100% sure. What are the labels on the four test pads nearby?

Chip numbered "8" (ATMLH006 2FB 2 == Atmel AT24C512B, 512Kbit I2C EEPROM) is more likely connected to the SETD-75 (Samsung manufactured Micronas/Trident FRC chip).

[oga83]

@sbav1 : I think you're right, I didn't know this ref. Good job !
