UN46C7000 LED bricked with service menu (changed the model)

Support for C series TVs that all user could ask. Please do not ask a questions at other forums.
Post Reply

gotchinezcki
Posts: 9
Joined: Sat Sep 22, 2012 1:41 am

Re: UN46C7000 LED bricked with service menu (changed the mod

Post by gotchinezcki »

sbav1 wrote:My bet is on chip number "10" (4256BRP == ST M24256, 256Kbit I2C EEPROM). It has the right size (32KB), and it seems to be connected to the main SoC - or maybe not, picture quality is not good enough to be 100% sure. What are the labels on the four test pads nearby?

Chip numbered "8" (ATMLH006 2FB 2 == Atmel AT24C512B, 512Kbit I2C EEPROM) is more likely connected to the SETD-75 (Samsung manufactured Micronas/Trident FRC chip).

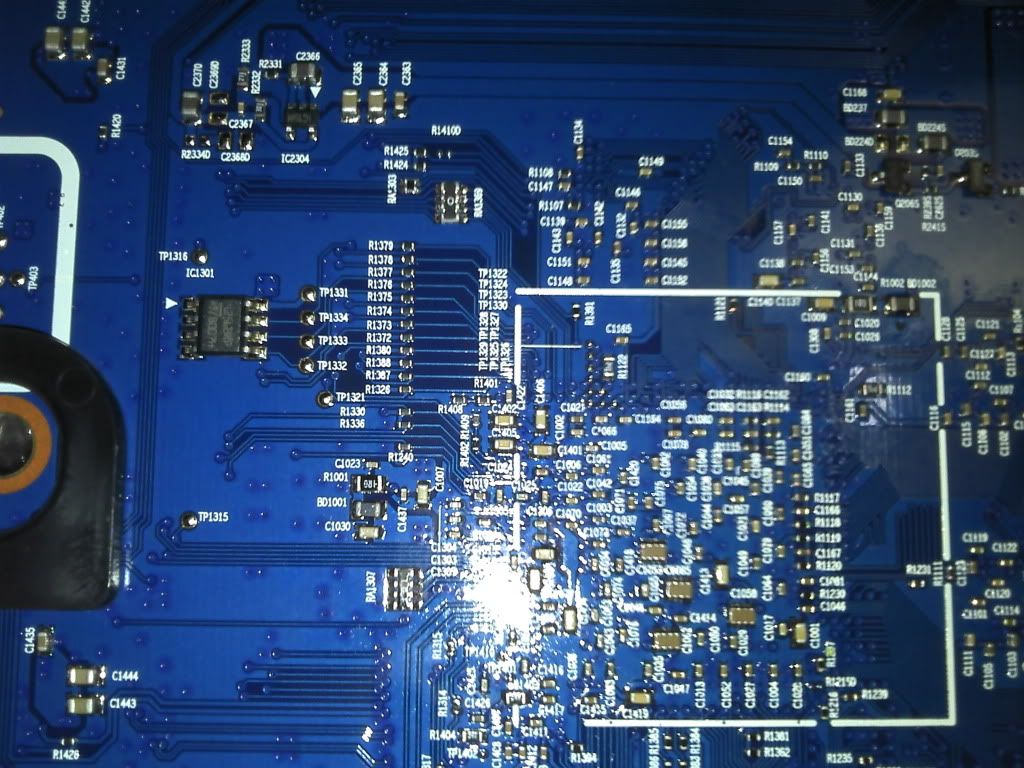

here you go sbav1 closer and better pictures of chip number 10.. thank you very much for your help...

http://i1110.photobucket.com/albums/h44 ... 42_776.jpg
http://i1110.photobucket.com/albums/h44 ... -18_58.jpg
Top
sbav1
Official SamyGO Developer
Posts: 374
Joined: Fri Jan 15, 2010 10:20 am

Re: UN46C7000 LED bricked with service menu (changed the mod

Post by sbav1 »

Yep, it certainly looks like the best EEPROM candidate for unbricking. I say go for it.
