UN46C7000 LED bricked with service menu (changed the model)

[gotchinezcki]

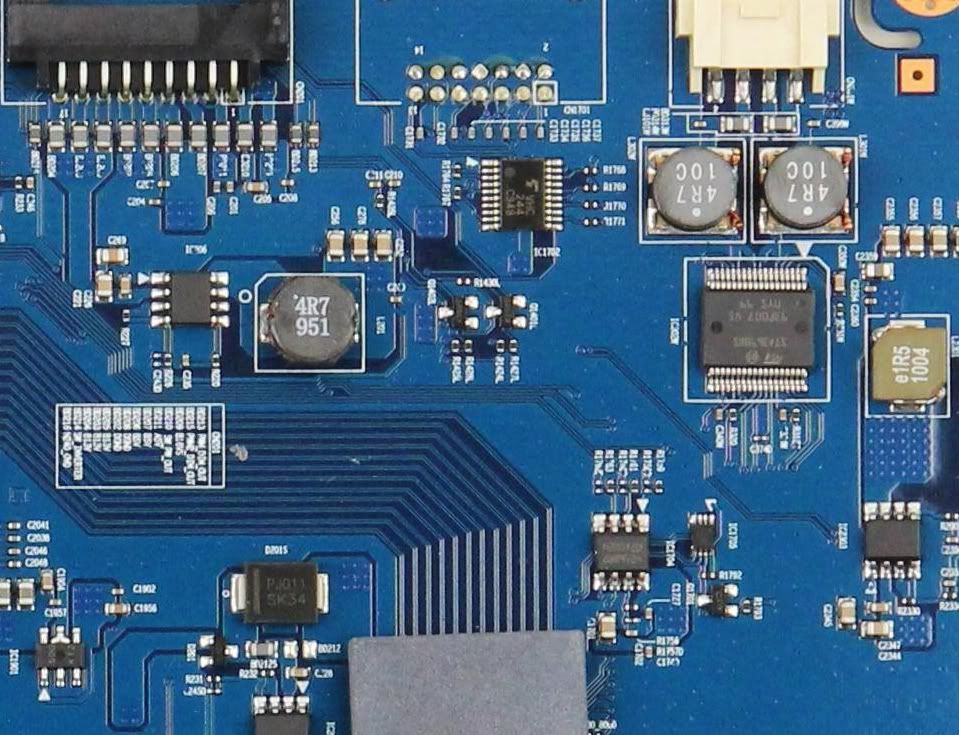

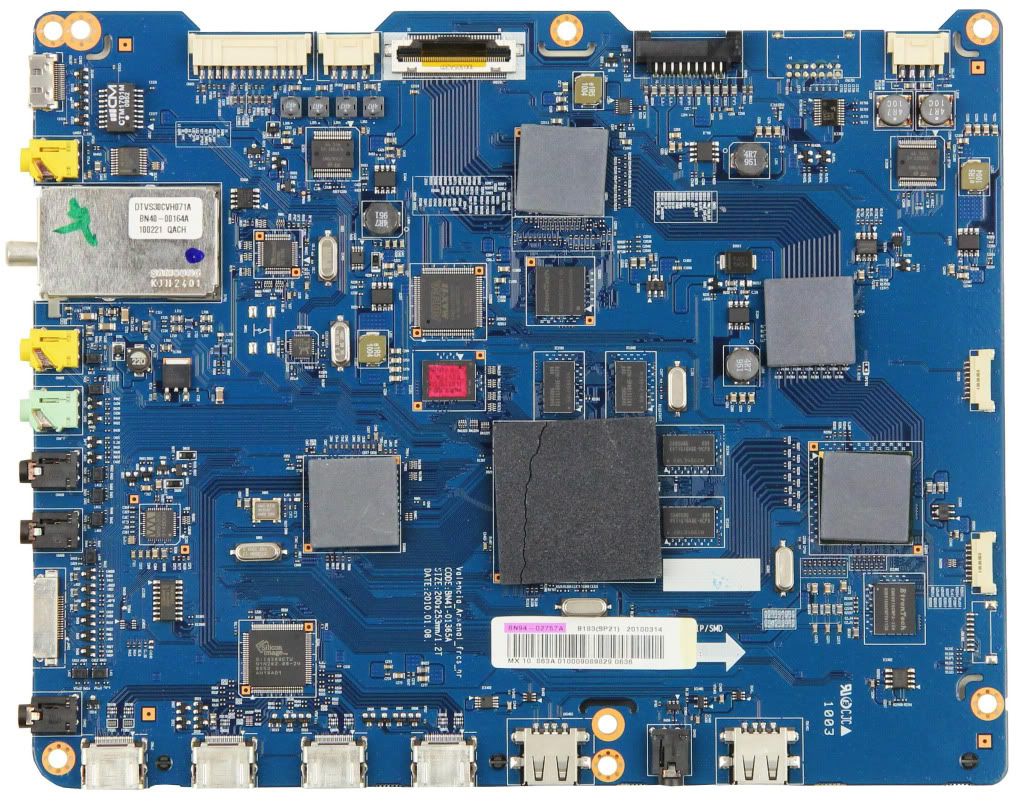

Hi guys, I changed in the service menu the model of my tv (UN46C7000) and now I can't do anything. It turns on and off by itself and I think the only solution is to reset the eeprom but I don't know where is it.. here are some pictures of the main board, hopefully someone can help me find it.

http://i1110.photobucket.com/albums/h44 ... 6a5e08.jpg
http://i1110.photobucket.com/albums/h44 ... 019edb.jpg
http://i1110.photobucket.com/albums/h44 ... f1eb08.jpg

Thx!!

[juusso]

It is hard to see, but i bet for those two. I`m not 100 percent sure.

[oga83]

I agree, it's hard to see...
I think that the yellow circled chip is the best candidate, as pin 5 (sda) seems to be grounded on the red one.
All other 8-pin chips don't seem to have good connections for an eeprom.
Nothing on the other side ?
Also try to read the refs on the chips

[nobody]

Did you try to enter service menu again using a remote (IR) ? Probably a soft reset + ir "factory remote" could help.

[juusso]

SOmetimes, if you can set TV to standBy (blindy), you can take spoonlight and check is smth is going on TV or not. People reported they were able to see service menus...

[gotchinezcki]

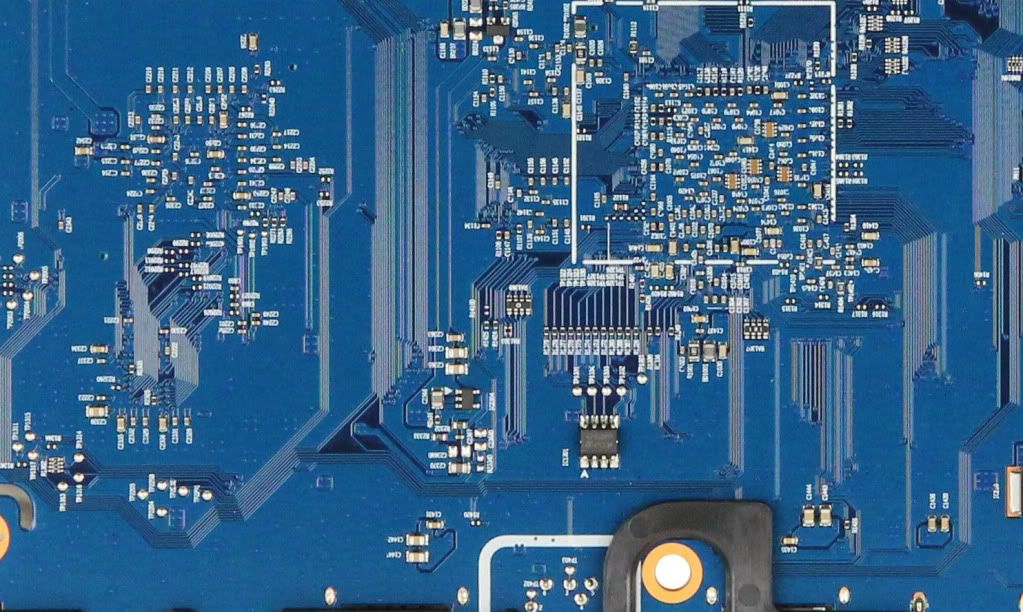

First of all thanks to all for your help, i will try all the solutions that you've given me and I'll be back to comment if i was successful... also here are some pictures of the other side of the main board there are two eight pin chips
http://i1110.photobucket.com/albums/h44 ... 9203ed.jpg
http://i1110.photobucket.com/albums/h44 ... f603c8.jpg

again, thank you all!

[oga83]

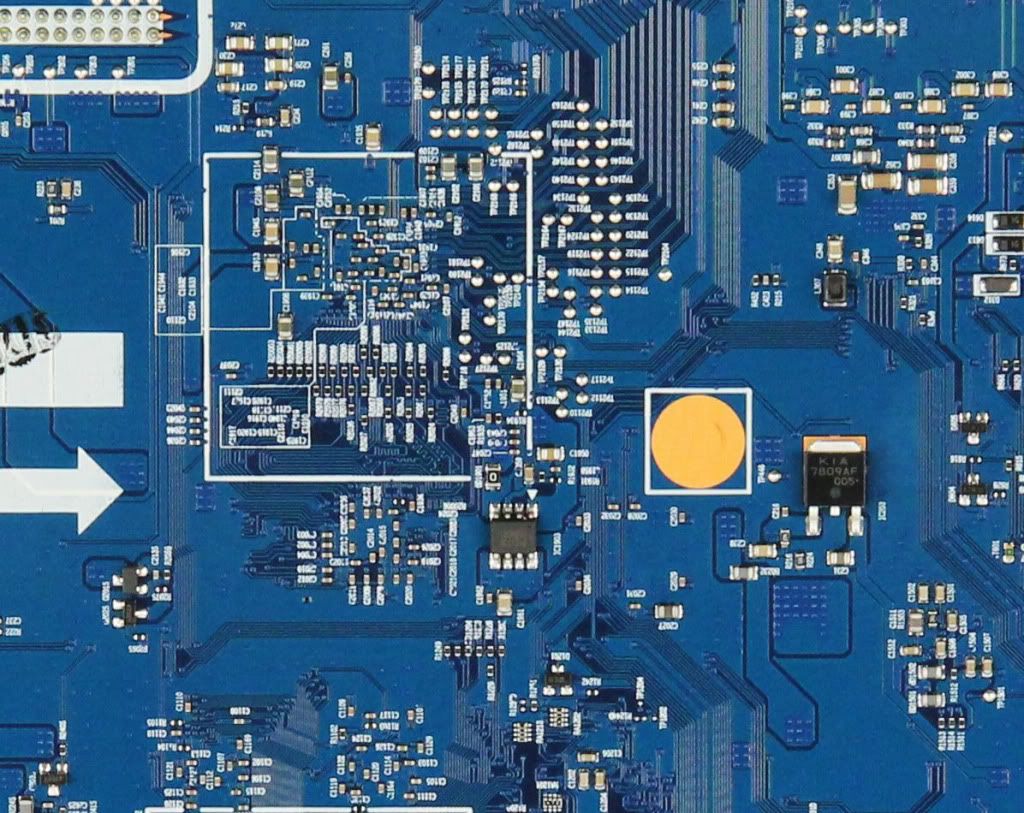

The one on picture BN94-02757A-BOTTOM1_zps299203ed is not an eeprom (SDA and SCL would be grounded)
The other one could be, but I cannot read its reference to confirm

[gotchinezcki]

The one on picture BN94-02757A-BOTTOM1_zps299203ed is not an eeprom (SDA and SCL would be grounded)
The other one could be, but I cannot read its reference to confirm

Ok.. I'll try to take clearer pictures of the chips and post them A.S.A.P., what's the reference that I'll should be looking for?

[oga83]

Something like 24C512 or S24Cxxx

[gotchinezcki]

Something like 24C512 or S24Cxxx

I've found one that says: S24CS0, i've tried to short the 5th and 6th pins but nothing happens.. all other 8 pin chips start with Z something...
